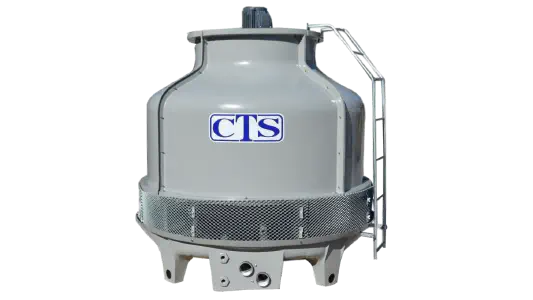

T-240
Cooling Tower Systems
Description
The T-2 Model line consists of counter flow induced draft FRP water cooling towers. Ranging from the Model T-23 (3 nominal ton) to the largest Model T-3500 (1,500 nominal ton). Lightweight and compact, the T-2 cooling tower provides quick and easy installation. Job site assembly is simplified by the modular design of all components.
Specifications
Air Volume
9,800 CFM
Cooling Capacity
600,000 BTU/hr
Dry Weight
308 lbs.
Fan Motor
1.5 HP, 6P, 208-230/460V, 3PH, 60Hz
Nozzle Type
Round, Female (NPT) Threaded, Nylon
Operating Weight
1,254 lbs.
Tower Diameter
71 5/8"
Tower Height
74.5"
Water Inlet
2.5"
Water Outlet
2.5"
