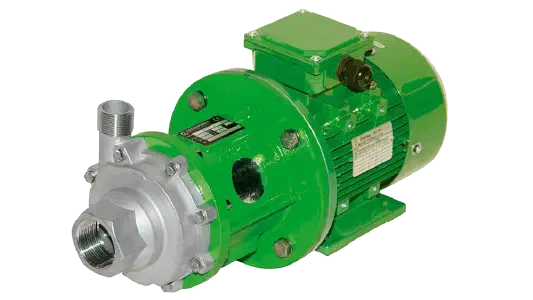

Series GPM SS316

Greenpumps

Description

GREENPUMPS GPM Sealless Alloy Centrifugal pumps are designed and fabricated for light duty and transfer caustic liquid applications, solvents, alkali, for industrial applications, chemical and OEM. GPM pumps are fabricated with casting technology.

Simple pump design with very low rotating parts increases MTBF (Mean Time Between Failure), allows easy maintenance, and increases reliability.

All GREENPUMPS, due to the construction features are thought to have zero leakages even in extreme working conditions. The absence of mechanical seal or packing gland eliminates dangerous emission in order to protect the environment and workers.

Specifications

Head up to 24 m (78 feet) @ 50 Hz / up to 34 m (111 feet) @ 60 Hz
Flow up to 28 m3/h (102 GMP) @ 50 Hz/ up to 40 m3/h (146 GPM) @ 60 Hz
Temperature range from -40°C (-40°F) to 200°C (392°F)
Specific gravity up to 2 kg/dm³
Standard system pressure 16 bar (232 PSI).
Pumps are also available in compliance with ATEX regulation category EX II 2 G
