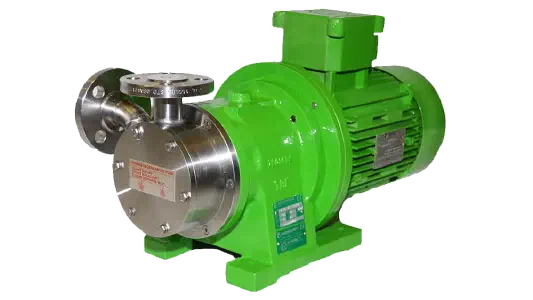

Series GPTA

Description

---

GREENPUMPS GPTA Sealless Alloy Centrifugal Turbine pumps are designed and fabricated for low flow and high head applications. They can maintain design head and flow for during an extended running period. The multi-vanes self-balancing impeller construction eliminates the thrust loads and can be started with completely open discharge valve. GPTA are suitable for thin non-lubricating mediums with a very low NPSH available value.

All GREENPUMPS, due to the construction features are thought to have zero leakages even in extreme working conditions. The absence of mechanical seal or packing gland eliminates dangerous emission in order to protect the environment and workers.

Specifications

• Discharge head up to 200 m (656 Feet) for GPTA200 @ 50 Hz / up to 240 m (787 Feet) @ 60 Hz
• Flow up to 16 m3/h (70 GPM) for GPTA200 @ 50 Hz / up to 17 m3/h (74 GPM) @ 60 Hz
• Temperature range -100°C (-150 °F) up to 315°C (600°F)
• Specific gravity up to 2 kg/dm³
• System pressure rating 16 bar (232 PSI) special design up to 450 bar (6500 PSI) and over
• Reversible rotation
• Can be used like a mixer, for liquids having different characteristics
