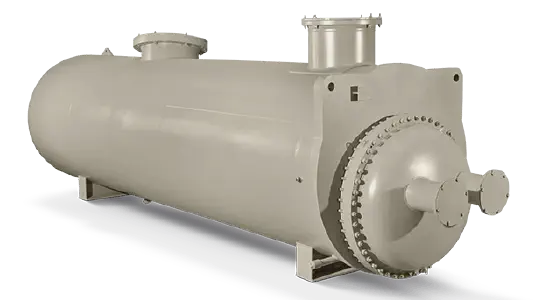

Type ES Surface Cooler
API Heat Transfer
Description

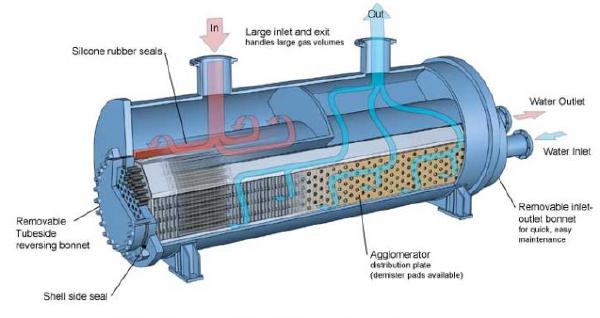

The Basco Type ES extended surface shell and tube fin heat exchanger is the industry leader for intercooler and aftercooler performance. Its unique patented compact plate fin design provides superior cooling of large air volumes at low pressure drops which means less energy consumption.
Applications
- Compressors
- Industrial Markets
- Process Industries
- Air Separation
- Data Centers
- Air Cooled
- Direct-to-Chip
Specifications
Fins
Aluminum, Coated Aluminum, or Copper. Variations in fin spacing from 8 to 20 fins per inch
Flow
Available in 2 or 4 pass designs typically, or any even number of passes.
Shells
Carbon Steel or 304 Stainless Steel
Sizes
20" to 120" diameter; 3' to 35' length
Tubes
3/8" or 5/8" diameter tubes available Carbon Steel, 304 Stainless Steel, Admiralty, 90/10 copper-nickel. 70/30 copper-nickel, or per customer specification.
