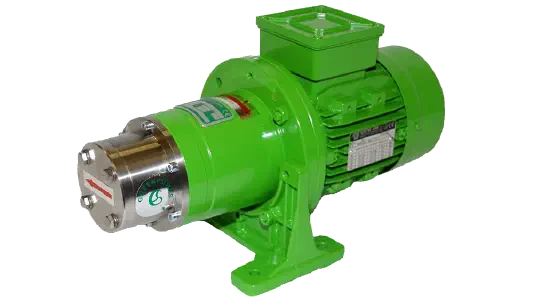

Series GPA

Greenpumps

Description

GREENPUMPS GPA sealless sliding vane pumps are designed and fabricated for constant low flow and high head self regulating applications. They can maintain design head and flow for during an extended running period because of self-compensating carbon vanes and are suitable for thin non-lubricating mediums eliminates pressure drop and without rapid wear of carbon parts.

All GREENPUMPS, due to the construction features are thought to have zero leakages even in extreme working conditions. The absence of mechanical seal or packing gland eliminates dangerous emission to protect the environment and workers.

Specifications

Head up to 13 Bar (188 PSI)
Flow up to 2000 l/h (7 GPM) @ 50 Hz / up to 2400 l/h (9 GPM) @ 60 Hz
Dry self-priming up to 2,5m (8 feet) of water
Temperature range -70°C (-100 °F) up to 200°C (392°F)
Specific gravities up to 2 kg/dm³
Viscosities up to 2000 cPs (8 poles motor)
System pressure rating 16 bar (232 PSI) special design up to 450 bar (6500 PSI) and over
